Heavy duty "ON" fastening/

SLIDING SUPPORT TYPE 130800

PODPĚRA KLUZNÁ TYP 130800
PODPĚRA KLUZNÁ TYP 130800
  • Technical data
  • material: steel
  • surface finish – base coating
  • pipe clamp: type 130600
Ordering code
CAD

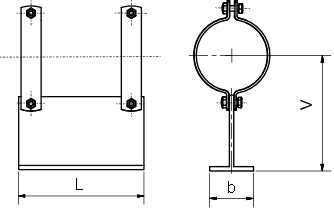

L (mm)
Packaging in pcs
DN
b (mm)
Weight (kg)
V (mm)
Number of packaging
Demand
Ordering code CAD L (mm) Packaging in pcs DN b (mm) Weight (kg) V (mm) Number of packaging Demand
352000020 - 200 1 20 40 1,6 100
352000025 - 200 1 25 40 1,65 100
352000032 - 200 1 32 50 2 120
352000040 - 200 1 40 50 2,1 120
352000050 - 200 1 50 50 3,1 155
352000065 - 200 1 65 60 3,4 165
352000080 - 200 1 80 60 3,6 170
352000100 - 250 1 100 60 6,6 200
352000125 - 250 1 125 80 7,2 220
352000150 - 250 1 150 80 7,8 240
